SUS 304 Food-Grade Stainless Steel Mesh Screen for Grain and Flour Sieves

SUS 304 Food-Grade Stainless Steel Wire Mesh Screen, known for exceptional quality and strength, are widely used in various industries, particularly in the food industry. These customizable and versatile mesh sheets / discs are used in grain, bean and flour sieve manufacture, ensuring durability, reliability, and compliance with food safety standards.

General Technical Specification

Mesh Count: Ranging from 6 to 200 mesh, with a higher count resulting in finer filter / sifting / sieving results.
Wire Diameter: Varies from 0.03mm to 3mm; thicker wires enhance the mesh sieve strength.
Overall Mesh Disc Diameter: Available in sizes like 100mm, 200mm, 300mm, 500mm, to fit various sieve sizes.

Features of Food-Grade Stainless Steel Woven Wire Screen for Grain and Flour Sieves

Precision Level: The ability to detect and filter specific particle sizes with high accuracy.
Temperature Resistance: Capable of performing at high temperatures without degradation.
Weave Type: The plain woven square mesh offers uniformity and strength.

Application: Food Grade Stainless Steel Mesh is used in Grain Handling and Food Processing:
For sifting / sieving / grading barley, beans, seeds, flour, sugar, spices, etc.

Forms of Supply:

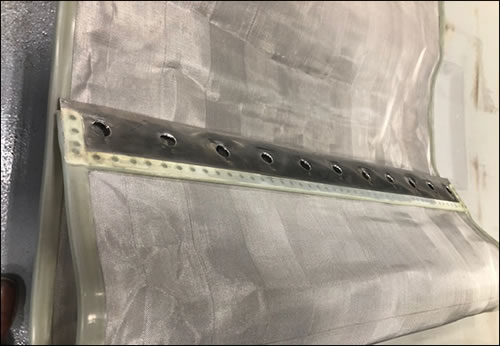

Food grade ss mesh cloth is supplied in rolls or pre-cut discs / pieces for manufacture of Flour Mill Sifters, Bean Sieves, Grain Sieves, Separating Pans and various shaking screens.

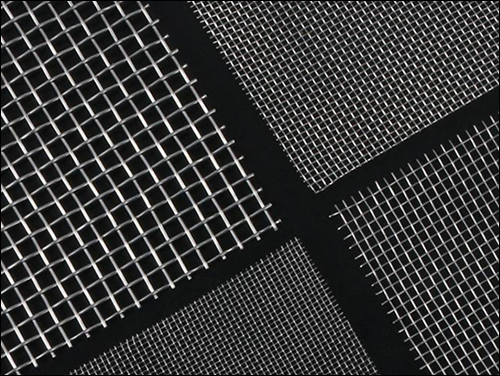

Food Grade SUS304 Stainless Steel Screen, Woven Wire Cloth, of Various Mesh Counts:

Food grade mesh cloth can be made of ss304, ss 316, in a wide range of apertures to suit various sifting / grading needs.

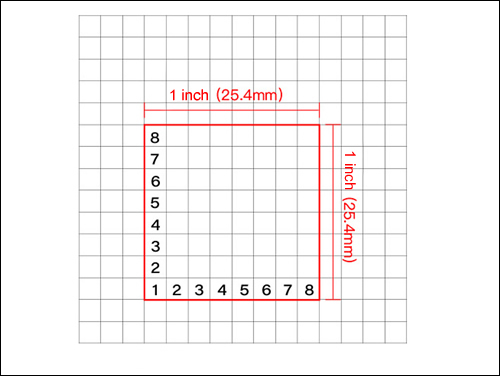

Mesh Count Example: to help understand the wire mesh technical terms:
Mesh counts / numbers refers to the holes in one inch length.

In a 1-inch length, the number of meshes can vary based on the intended use. For example, a standard 8 x 8 mesh has 8 holes in one row, referred to as an 8-mesh, and so on.

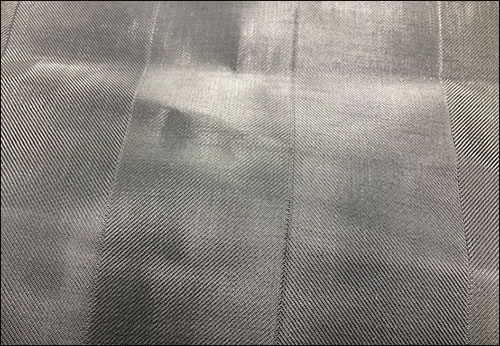

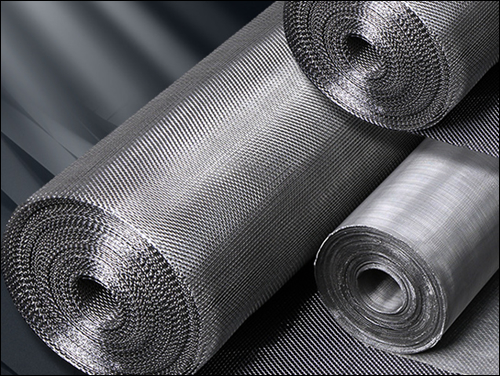

Food Grade SS Mesh Cloth Rolls

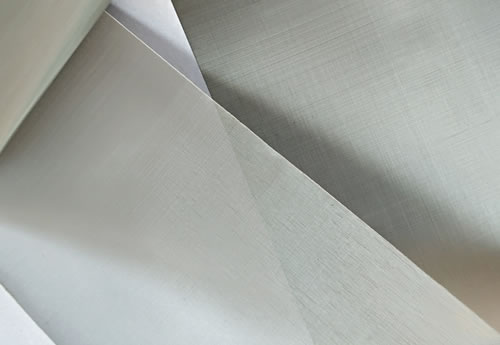

High-Precision, High-Temperature Resistant SS Screen of Plain Woven Mesh for Food Grade Sieves
The High-Precision, High-Temperature Resistant Food Grade SS Plain Woven Mesh serves to separate, sift, or sort materials. Specially designed for demanding industrial applications, it's known for its accuracy and ability to endure high temperatures, making it a versatile screen material in various fields such as food processing and mining.

Stainless Steel Wire Mesh for food and grain handling industry, can be supplied in rolls of various length and width sizes.

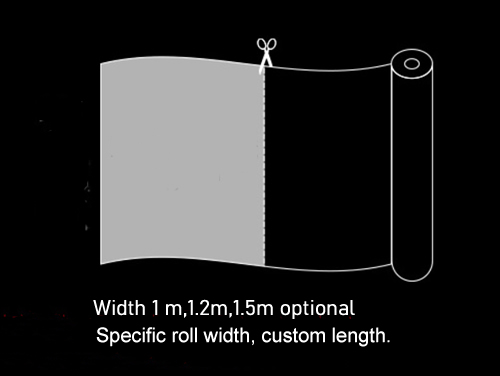

Roll size examples:

Purchase Options: Mesh rolls widths: 1m, 1.2m, 1.5m, length can be customized.

Mesh Discs for Beans, Barley, Flours Sieves

The overall diameter of the wire mesh disc / sheet determines its compatibility with various sieves. Common sizes may range from 4 inches to 20 inches, depending on the specific application.

SS Mesh Screen Disc for Grain Dockage Sieves:

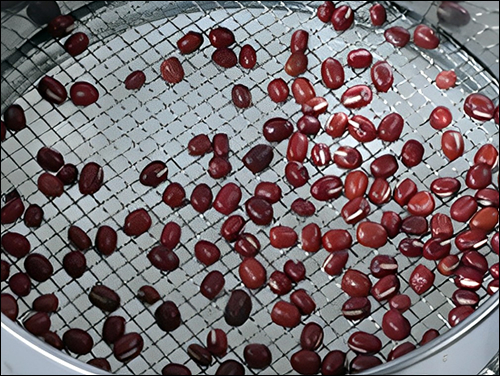

Beans Grading Sieve of 6 mesh stainless steel wire mesh- disc filter for adzuki beans

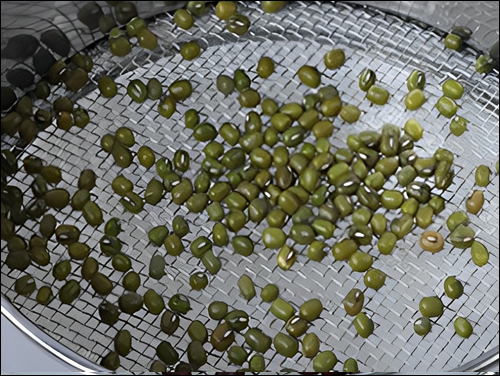

10 mesh stainless steel wire mesh disc for mung bean dockage sieves

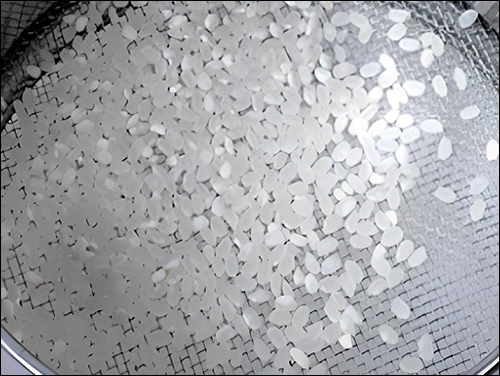

12 mesh stainless steel wire mesh filter disc for rice grading sieves

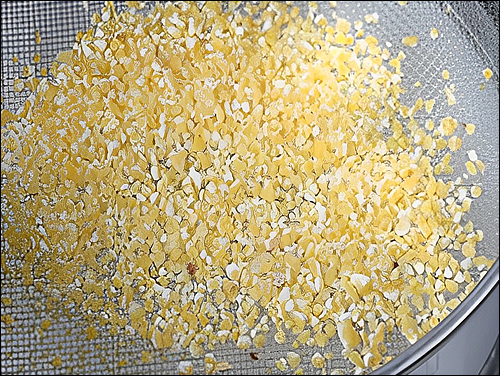

20 mesh 304L wire mesh for millet sieves

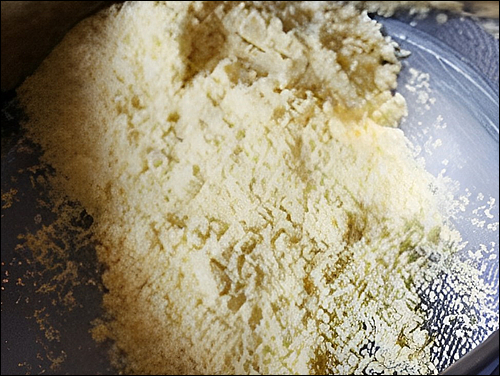

30 mesh SUS 304 Stainless Steel mesh disc for maize flour

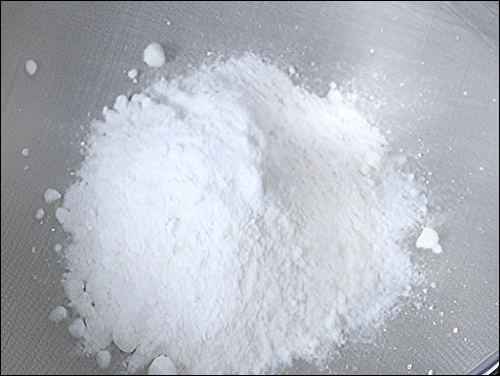

60 mesh disc for wheat flours mill sieves

Finished Grain Sieves Products

Sieves Set for Grading of Wheat Grain
Each Set/4 Pieces
Material: 100% 304 Stainless Steel

Sieve Test Analyzer
With vibrator
Application: To check barley/wheat grain size.
Sieves sizes: 2.8mm, 2.5mm, 2.2mm.
