SS304 Turn Belting for for Freezing and Cooling Conveying Uses Angles: 45° to 90°

Turning Belts are wire conveyor belts manufactured with a variety of widths, radius, and degree of turns to meet specific operational requirements, ensuring compatibility with a wide range of spiral and turn curve conveyor systems.

Guard edges, lane dividers, and flights can be added to overlay during the fabrication process to offer a cost-effective solution.

Types of metal wire mesh belts suited for creating curves and turns:

Balanced Weave Mesh Belts: Often used for curved conveyors due to their combination of flexibility and strength.
Spiral Wire Belts: Used for turns and curves conveyors, especially in applications like cooling and freezing lines.
Flat flex Mesh Belt: Turning table belt used in a wide range of industires to save spaces

Typical Components of a turn belt:
Wire Mesh
Drive Components
Support Structure
Edges
Guides and Rails
Tensioning System
Cleaning Accessories
Conveyor Frame

Stainless Steel Mesh Curved Turning Belt Products

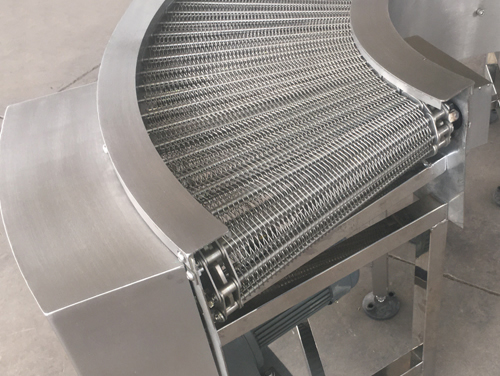

Spiral Turn Curve Belt

Specifications:
Material: Premium quality stainless steel 304 grade.
Pitch: 1" pitch.
Available Angles: 45° to 90°
Turn Radius: 1.6 turn radius.
Wire Gauge: 6-gauge rods
Links: Designed with wear-resistant links for prolonged belt life.
Tension Bridge Links: The belt includes heavy-duty welded tension bridge links that ensure robustness and longevity.
Rods: Oversized stainless-steel rods are used to reinforce the belt, adding to its strength and reliability.
Grid Design: The turn radius grid design aids in maintaining a compact and efficient conveying path, particularly in spiral and curved sections.

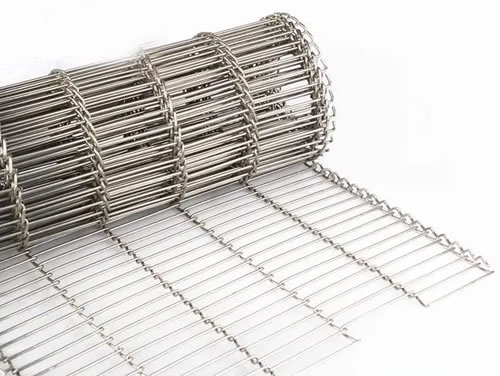

Turning Table Flat Flex Wire Mesh Belt
Ladder shape belt
Specifications:
Overall width: 1090mm
Inner radius: 14-1/2"
Outer radius: 58"
Stainless wire gauge: #14 (1.60mm diameter)
Available Angles: 45° to 90°

Customized Service: The curved belts can be customized in terms of length, width, and turn radius to fit specific conveyor layouts and unique operational applications, such as specific temperature ranges, load capacities, and industry-specific hygiene standards.
