SS 316L Wire Mesh Screen – Precise and Corrosion Resistant Filter and Sieving Screen

SS 316L wire mesh screen is made by woven stainless steel wires to create a stable and uniform mesh structure. It is available in plain weave, twill weave, and dutch weave types, offering a wide range of micron ratings for precise particle retention. With excellent resistance to corrosion, acids and high temperatures, stainless steel 316L mesh screen is widely used in chemical processing, pharmaceuticals, food production and marine applications.

General Specifications of SS 316L Woven Wire Mesh Screen:
Material: Stainless Steel 316L (low carbon, molybdenum alloy)
Weave Types: Plain weave, twill weave, plain dutch and twill dutch
Mesh Count: 2 mesh – 500 mesh
Wire Diameter Range: 0.02 mm – 6.0 mm
Aperture Size: 0.025 mm – 10 mm
Roll Width: 1.0 m, 1.22 m, 1.5 m, up to 2.0 m
Roll Length: Standard 30 m rolls, custom sizes available
Finish: Bright, annealed

Applications
SS 316L woven mesh screens have stable pore sizes, high strength and long service life, mainly used as:
Filter screen of liquids and gases;
Wire mesh screen used in centrifuge and extruder machines;
Sieving screen of powders and granules;
Corrosion-resistant screening in marine and industrial environments.

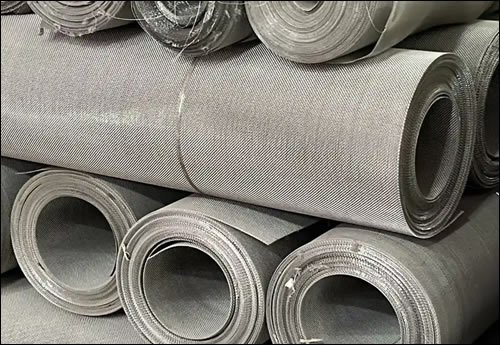

SS 316L Stainless Steel Wire Mesh Plain Dutch Weave

Stainless Steel Wire Mesh 24/110 Mesh 0.35 mm × 0.25 mm × 1.28 m x 30 m SS 316L
Weave Type: Plain Dutch Weave
Mesh Count: 24 × 110 mesh
Wire Diameter: Warp 0.35 mm, Weft 0.25 mm
Material: SS 316L (904L optional)
Roll Size: Width 1.28 m × Length 30 m
Packing: 30 m per roll, moisture-proof paper + plastic film, wooden case or pallet
Application: For filter screen and sieves
Note: Material conformation certificate is provided along with material.

316L SS Mesh 24/110 Mesh 0.35 mm × 0.25 mm × 1.50 m × 30 m Roll
Weave Type: Plain Dutch Weave
Mesh Count: 24 × 110 mesh
Wire Diameter: Warp 0.35 mm, Weft 0.25 mm
Material: SS 316L (904L optional)
Roll Size: Width 1.50 m × Length 30 m
Packing: 30 m per roll, wrapped in protective packaging with palletized shipment
Application: Fine filtration mesh for extrusion screening and liquid separation
Note: Material conformation certificate is provided along with material.

SS 316L Stainless Steel Mesh 8 Mesh 0.7mm x 1.5 x 30m
Square Opening SS 316L Wire Mesh
Weave Type: Plain Weave
Mesh Count: No. 8 mesh (8 openings per inch)
Wire Diameter: 0.70 mm
Material: SS 316L ( 904L optional)
Roll Size: Width 1.50 m × Length 30 m
Packing: 30 m per roll, plastic film + moisture-proof paper, packed in wooden case
Application: Coarse stainless steel mesh for sieving and screening
Note: Material conformation certificate is provided along with material.

Stainless Steel Mesh No. 4 Mesh 1.0 mm × 1.50 m × 30 m SS 316L
Square Opening SS 316L Wire Mesh
Weave Type: Plain Weave
Weave Type: Plain Weave
Mesh Count: No. 4 mesh (4 openings per inch)
Wire Diameter: 1.0 mm
Material: SS 316L stainless steel, corrosion and heat resistant ( 904L optional)
Roll Size: Width 1.50 m × Length 30 m
Packing: 30 m per roll, wrapped with moisture-proof paper and plastic film, then in wooden case or pallet
Application: Coarse stainless steel mesh for mining screens and heavy-duty sieving
Note: Material conformation certificate is provided along with material.

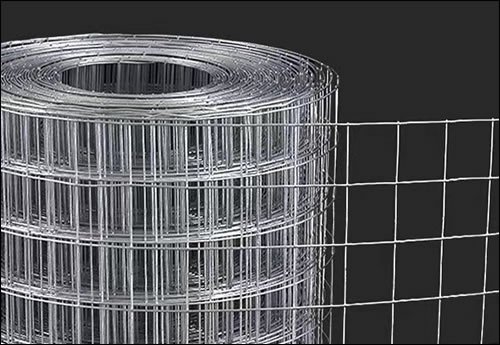

Resistant Type SS-316 Wire Mesh Screen for Strainers

Resistant Type, SS-316, Wire Mesh Screen
Mesh Size : 4 x 4 (Mesh per Inch)
Wire Dia. (Gauge) : 0.060 (Inch)
Material : Stainless Steel-316L
Size: Width : 48
Length : 6 Meter
Application: Mesh screen for strainers
Note: Material conformation certificate is provided along with material.

Stainless Steel Wire Mesh in AISI 316L Supply to Germany
2/2/cm with diameter 1,80 x 0,65m (half round wire)
Open ended
Size: 35,00 x 2,80m

Stainless Steel Wiremesh in AISI 316L
20/17/cm with diameter 0,24mm
Open ended
Sizes: 35,00 x 2,80m

Stainless Steel Wire Mesh in AISI 316L
18/16/cm with diameter 0,25mm
Open ended
Sizes: 30,00 x 3,50m

Stainless Steel Wire Mesh in AISI 316L
20/cm - Diagonally welded
Sizes: 3150 x 1700mm

Stainless Steel Wiremesh in AISI 316L
Plain Dutch weave
Mesh 24 x 110 with diam 0,35/0,25mm
Sizes: 30,00 x 1,30m
