Steel Mesh Disc Filter Screen-Plain Steel, Black Annealed

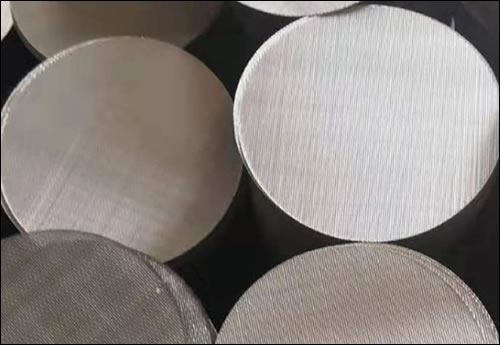

Steel Mesh Filter Discs made from plain (carbon) steel wire mesh are commonly used for general-purpose filtration and screening applications. These discs are produced from plain woven square mesh cloths.

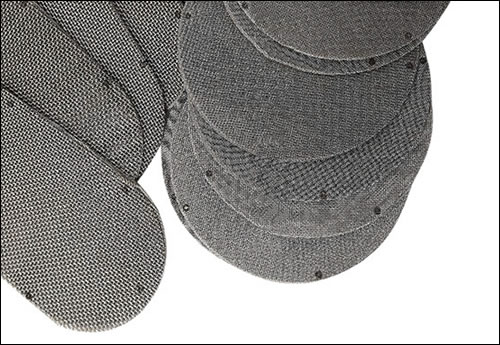

Black wire cloth disc is a type of plain steel mesh disc with dark, oiled annealed surface finish, commonly used for temporary and coarse filtration.

Steel mesh discs are available in various mesh counts and disc diameters.

Disc Shape:
Circular mesh discs, no frame;
Mesh discs welded;
Oval discs;
Other types.

Plain Steel Mesh Filter Discs 410mm 20 Mesh x 0.5mm

Material: Plain steel
Weave: Plain Weave
Mesh count: 20 x 20 Mesh
Wire Diameter: 0.5mm
Disc Diameter: 410mm
Thickness: 0.14mm

Black Annealed Steel Mesh Filter Discs 410mm 20 Mesh x 0.3mm

Material: Plain steel
Weave: Plain Weave
Mesh count: 20 x 20 Mesh
Wire Diameter: 0.3mm
Disc Diameter: 410mm
Thickness: 0.65mm
Edge type: Non frame, spot welded
Finish: Black annealed oiled
Oval shape filter screen available.

Steel Mesh Disc Filter 330mm
Material: Plain steel
Weave: Plain Weave
Mesh count: 20 x 20 Mesh
Wire Diameter: 0.5mm
Disc Diameter: 330mm
Thickness: 0.14mm

Plain Steel Mesh Discs 4.625" 40 Mesh Plain Weave
Disc Diameter: 4.625"
Mesh Count: 40 x40 Mesh
Wire Diameter: 0.0100"
Disc Tolerance: ±0.025"
Material: Plain Steel

Plain Steel Mesh Discs 4.625" 40 Mesh Plain Weave
Disc Diameter: 4.625"
Mesh Count: 60 x60 Mesh
Wire Diameter: 0.0100"
Disc Tolerance: ±0.025"
Material: Plain Steel

Plain Steel Mesh Discs 3.625" 40 Mesh Plain Weave
Disc Diameter: 3.625"
Mesh Count: 40 x 40 Mesh
Wire Diameter: 0.0100"
Disc Tolerance: ±0.025"
Material: Plain Steel

Plain Steel Mesh Discs 3.625" 60 Mesh Plain Weave
Disc Diameter: 3.625"
Mesh Count: 60 x 60 Mesh
Wire Diameter: 0.0075"
Disc Tolerance: ±0.025"
Material: Plain Steel
