316 Stainless Steel Cable Structure Metal Fabric Facade Mesh for Exterior Cladding Decoration Project

Hehua supplies Metal Mesh Decorative Fabric used as Claddings Panels for various building exterior decoration projects in Ocean area and other environments.

Project name: Facade decoration for building project, in Arabian Gulf
Material: Stainless metallic mesh 316L grade

Reason to choose stainless steel mesh material:
The project building is sited in seashore area with sea corrosion environment, at the same time the building is a high grade modern shopping mall.

To get a decorative effect of modern feeling, and to guarantee a long service life, AISI 316L mesh with excellent corrosion resistance property is chosen.

Design purpose: Facade cladding, wall cladding, sun shading screen

Mesh Fabric for Facade Cladding

Stainless Steel Cable Structure Metal Fabric Mesh for Cladding of Facades

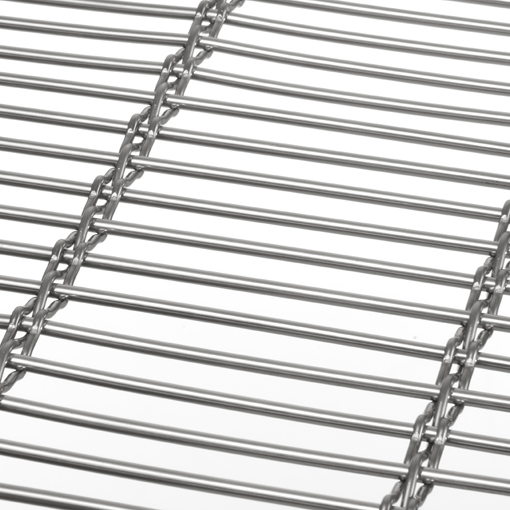

Metal Mesh Façade Grille - Decorative Screen Panels
Material grade: AISI 316L
Patterns: Spiral Webnet
Type: Steel bar and crimped wire woven
Finish: Natural Stainless Steel metal fabric

Project Details:

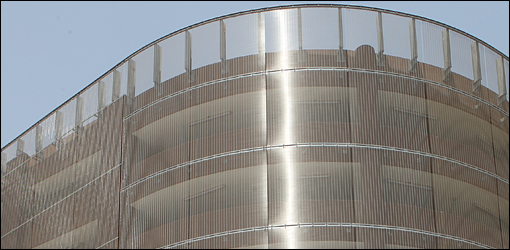

Stainless Mesh Panels for exterior facade decoration:

Stainless steel mesh panels for building project, in Arabian Gulf
1980mm Wide per panel, Height Varies (13, 750mm max), Thickness approx. 3.5mm
Application: Facade and wall cladding panels functions as sun screening and ventilation grille
Fixing: Rod and spring tensioner where required refer facade engineer’s details
Joints: Minimised Joints between mesh fabric panels, 40mm max.
Wrap top and bottom of mesh to tensioner located on façade.
