Plain Weave Stainless Steel Wire Mesh Screen 80–150 Mesh AISI 304/316 for Pipeline Flange Gaskets, Strainer Filters and Industrial Filtration Systems

Plain weave stainless steel wire mesh is widely used in industrial piping systems as a piping screen, strainer screen and gasket screen. Manufactured from AISI 304 or 316 stainless steel, the wire mesh is cut into sheets, discs or gasket inserts.

Functions of Plain Weave SS304 Stainless Steel Mesh Screen in Piping System:
The wire mesh sheets or discs are installed between pipe flanges, strainers, filter assemblies as mesh gasket screens or industrial strainer mesh inserts. The filter screen provides fine particulate filtration, protecting valves, pumps and meters in pipelines.

Industries Served:
Stainless steel plain weave wire mesh filter screen is widely used in piping systems of oil, gas, chemical and water treatment industries.

Stainless Steel Wire Mesh Sheets AISI 304 100 Mesh

Specifications:
Mesh Type: Plain weave stainless steel wire mesh
Mesh Count: 100 mesh
Wire Diameter: 0.1 mm (0.004 in)
Opening Size: 0.15 mm (0.006 in)
Material: AISI 304 stainless steel
Sheet Size: 0.5 m × 0.5 m ( (rectangular, custom cutting available)
Applications: Industrial piping systems, to be cut and inserted between piping flanges for filtration and sealing.

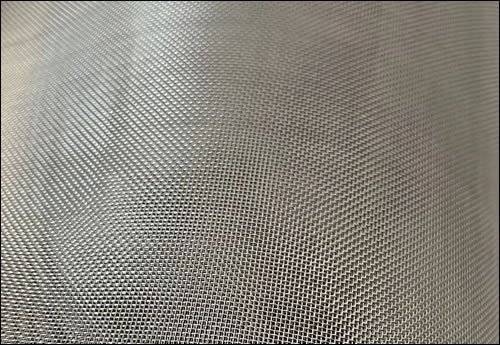

Stainless Steel Mesh Sheet 80 Mesh– AISI 304 Plain Weave

Specifications:
Mesh Type: Plain weave stainless steel wire mesh
Mesh Count: 80 mesh
Wire Diameter: 0.12–0.15 mm
Opening Size: 0.18–0.20 mm
Material: AISI 304 (316 stainless steel optional)
Sheet Size: 0.5 m × 0.5 m, 1 m × 1 m (custom cutting available)
Applications: Used for pipeline strainer baskets and flange gasket screens.

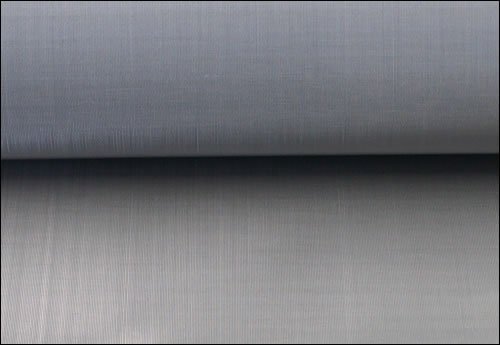

Stainless Steel Mesh Screen 120 Mesh – AISI 304 Plain Weave

Specifications:
Mesh Type: Plain weave stainless steel wire mesh
Mesh Count: 120 mesh
Wire Diameter: 0.08–0.10 mm
Opening Size: 0.12–0.13 mm
Material: AISI 304 (316 stainless steel optional)
Sheet Size: 0.5 m × 0.5 m, 1 m × 1 m(custom cutting available)
Applications: Fine filtration for chemical, pharmaceutical, and gas pipeline systems.

Stainless Steel Wire Cloth Screen 150 Mesh– AISI 304 Plain Weave
Specifications:
Mesh Type: Plain weave stainless steel wire mesh
Mesh Count: 150 mesh
Wire Diameter: 0.07–0.09 mm
Opening Size: ~0.10 mm
Material: AISI 304 (316 stainless steel optional)
Sheet Size: 0.5 m × 0.5 m, 1 m × 1 m(custom cutting available)
Applications: Fine filtration in precision equipment and high-purity process systems.
