Stainless Steel Shale Shaker Screens for Oil field Drilling Mud and Solid Control in Shale Shakers API Standard

Shale shaker screen is made from stainless steel wire mesh bonded to a steel frame or composite frame. This vibrating mesh screen provides efficient solids removal and long service life in petroleum industry. Stainless steel shale shaker screens are widely used in oil field drilling rigs for solids control, ensuring clean mud recovery and stable drilling operations.

We supply shale shaker screen mesh products for oil and gas equipment manufacturers and petroleum companies in India, Oman, Kuwait, UAE, Kenya, Nigeria, USA, Russia and other countries.

Oil field drilling screens can be made for shale shakers of various standards. We provide standards, ISO's and QC report samples, also lead-time, payment and delivery information upon request.

Forms of shale shaker screens:
We manufacture and supply Flat Panel, Corrugated/Wave, 3D Wave and Pretensioned Frame screens, depending on shaker model and drilling requirements. 3D Corrugated Shale Shaker Screen is designed with a pyramid shape wave surface and increased screening area compared with flat screens.

Common sizes: SS 316 mesh screens for shale shaker Api 35, 40, 45, 50, 60, 70, 80, 100, 120, 140, 170, 200, 230, 270, 325.

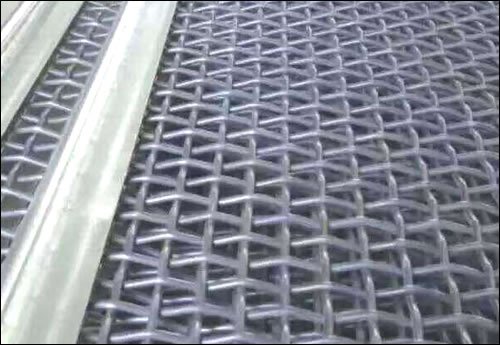

Oilfield Shaker Stainless Steel Screens-Hook Strip Flat Screen

SS 316 Meshes for Oilfield Shaker Screens
Stainless steel screens shale shaker size 40 inch x 60 insh, 48 inch × 66 inch

Material: Stainless Steel SS304 / SS316 / SS316L
Screen Type: Hook Strip Flat Screen, Pretensioned Mesh Screen
Mesh Layer: Single
Packing: Each screen shall be packed in one box
Boxes must be marked with Size, Mesh, and Part Number
Standards: Screens must be manufactured in accordance with API RP 13C (ISO 13501)

Hook Strip Shaker Screen 48" × 66" – 30 × 30 Mesh
Panel Size: 1219 × 1676 mm
Frame Type: Hook strip
Mesh Count: 30 × 30 mesh
Opening Percent: 40.8 %
Micron cut MOD: 541µm
Mesh Materials: SS316 stainless steel (SS304/316L optional)
Mesh Layer: One layer
Uses: First-stage separation in drilling mud systems

Hook Strip Shaker Screen 48" × 66" – 40 × 40 Mesh
Panel Size: 1219 × 1676 mm
Frame Type: Hook strip
Mesh Count: 40 × 40 mesh
Opening Percent: 36 %
Micron cut MOD: 381 µm – API 40
Mesh Materials: SS316 stainless steel (SS304/316L optional)
Mesh Layer: One layer
Uses: Solids separation to improve drilling fluid

Hook Strip Shaker Screen 48" × 66" – 50 × 50 Mesh
Panel Size: 1219 × 1676 mm
Frame Type: Hook strip
Mesh Count: 50 × 50 mesh
Opening Percent: 30.3 %
Micron cut MOD: 279 µm – API 50
Mesh Materials: SS316 stainless steel (SS304/316L optional)
Mesh Layer: One layer
Uses: Fine solids removal and mud recovery

Hook Strip Shaker Screen 48" × 66" – 8 × 20 Mesh
Panel Size: 1219 × 1676 mm
Frame Type: Hook strip
Mesh Count: 8 × 20 mesh
Opening Percent: 45.7 %
Micron cut MOD: 2362 × 762 µm – API 20
Mesh Materials: SS316 stainless steel (SS304/316L optional)
Mesh Layer: One layer
Uses: High flow-rate drilling operations

Hook Strip Shaker Screen 48" × 66" – 20 × 30 Mesh
Panel Size: 1219 × 1676 mm
Frame Type: Hook strip
Mesh Count: 20 × 30 mesh
Opening Percent: 39.5 %
Micron cut MOD: 889 × 465 µm
Mesh Materials: SS316 stainless steel (SS304/316L optional)
Mesh Layer: One layer
Uses: Primary stage drilling solids control

Hook Strip Shaker Screen 48" × 66" – 20x40 Mesh
Panel Size: 1219 × 1676 mm
Frame Type: Hook strip
Mesh Count: 20 × 40 mesh
Opening Percent: 36.8 %
Micron cut MOD: 910 × 310 µm
Mesh Materials: SS316 stainless steel (SS304/316L optional)
Mesh Layer: One layer
Uses: Secondary mud screening

Hook Strip Shaker Screen 48" × 66" – 20 × 60 Mesh
Panel Size: 1219 × 1676 mm
Frame Type: Hook strip
Mesh Count: 20 × 60 mesh
Opening Percent: 41.5 %
Micron cut MOD: 830 × 200 µm
Mesh Materials: SS316 stainless steel (SS304/316L optional)
Mesh Layer: One layer
Uses: Fine solids control in drilling fluid recovery

Hook Strip Shaker Screen 48" × 66" – 40 × 60 Mesh
Panel Size: 1219 × 1676 mm
Frame Type: Hook strip
Mesh Count: 40 × 60 mesh
Opening Percent: 31.1 %
Micron cut MOD: 406 × 200 µm
Mesh Materials: SS316 stainless steel (SS304/316L optional)
Mesh Layer: One layer
Uses: Ultra-fine solids separation

Steel Framed Shale Shaker Screens
Specifications supply to USA
Type: Steel Frame Shaker Screen
Frame Material: High-strength Steel Frame with multiple support ribs
Screen Material: Stainless Steel Wire Mesh SS316
Screen Form: Flat panel or corrugated
Standard Compliance: API RP 13C (ISO 13501)

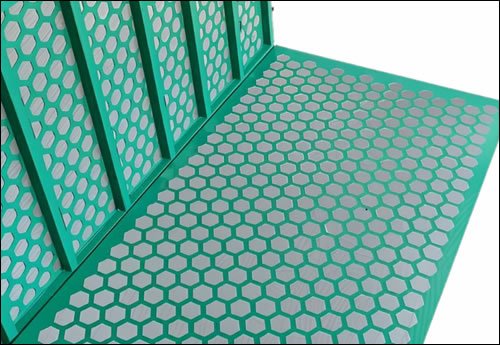

Steel Framed Shaker Screen 20.5" × 29"

Panel size: 521 × 737 mm
Frame Type: Steel frame with reinforcing ribs
Mesh Options: API 20 – API 325 (840 µm – 44 µm)
Uses: Small shaker units, compact drilling rigs

Steel Framed Shaker Screen 20.5" × 29"
Panel Size 610 × 915 mm
Frame Type: Steel frame with side supports and cross ribs
Mesh Options: API 20 – API 325 (840 µm – 44 µm)
Panel Form: Flat, wave style
Uses: Standard shakers in medium-capacity drilling mud systems

Steel Framed Shaker Screen 29" × 42"
Panel Size: 737 × 1067 mm
Frame Type: Heavy-duty steel frame with cross supports
Panel Form: Flat, corrugated (wave) type
Uses: Large-capacity shale shakers, offshore and onshore oilfield applications

Shale Shaker Screens Corrugated 3D Wave Type

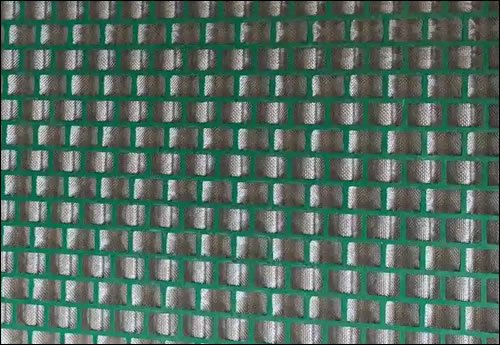

Shale Shaker Screen Corrugated – API 140
Shaker Type: Single-deck shaker with triple-screen layout
Screen Type: Corrugated / Wave Type
Mesh Material: Stainless Steel 316 wire cloth, 304 optional
API (American Petroleum Institute) Rating: API 140 (105 microns)
Mesh Weaving Type: Plain weave / twill weave, multi-layer bonded mesh
Screen Form: Hook strip frame with corrugated wave surface
Uses: Oil field drilling solids control, efficient fine particle separation, mud recovery

Shale Shaker Screen Corrugated – API 120
Shaker Type: Single-deck shaker with triple-screen layout
Screen Type: Corrugated / Wave design
Mesh Material: Stainless Steel 316 wire cloth, 304 optional
API (American Petroleum Institute) Rating: API 120 (125 microns)
Mesh Weaving Type: Plain weave / twill weave, layered construction
Screen Form: Hook strip frame, corrugated wave profile
Uses: Solids control in oil and gas drilling, mud cleaning

Shale Shaker Screen Corrugated – API 170
Shaker Type: High-capacity shaker, 2000 series design
Screen Type: Wave Type
Mesh Material: Stainless Steel 316 wire cloth, 304 optional
API (American Petroleum Institute) Rating: API 170 ( 88 microns)
Mesh Weaving Type: Plain weave, reinforced with backing mesh
Screen Form: Hook strip bonded frame, corrugated surface
Uses: High-efficiency solids control in oil field drilling, deep well operations

High-Capacity Shale Shaker Screen Corrugated – API 140
Shaker Type: High-capacity shaker, 2000 series design
Screen Type: Corrugated / 3D Wave design
Mesh Material: Stainless Steel 316 wire cloth, 304 optional
API (American Petroleum Institute) Rating: API 140 (105 microns)
Mesh Weaving Type: Plain weave / twill weave, multi-layer bonded structure
Screen Form: Hook type frame with corrugated wave profile
Uses: Oil field drilling mud systems, fine solids removal
Screen Specifications Supply to drilling companies in Iran

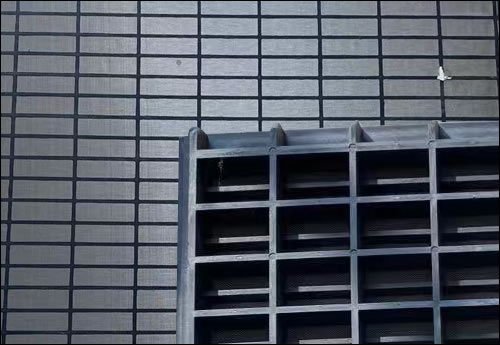

API Shale Shaker Screen Panel 1050x697mm-Replacement Screen API RP 13C (ISO 13501)
Multi Layer Wire Mesh Shale Shaker Screens with following API & Micron Ratings Supply to U.A.E. petroleum industries:

Shaker Screen API 50 – 297 Micron

Opening size: 297 µm
Standard Compliance: API RP 13C (ISO 13501)
Material: Stainless Steel Wire Mesh with steel frame
Weaving Type: Square mesh, multi-layer bonded
Panel Size: 1050 × 697 mm
Mesh Layers: 2 layers
Uses: Coarse cuttings removal, first-stage screening

Shaker Screen API 60 – 250 Micron
Opening size: 250 µm
Standard Compliance: API RP 13C (ISO 13501)
Material: Stainless Steel Wire Mesh with steel frame
Weaving Type: Square mesh, multi-layer bonded
Panel Size: 1050 × 697 mm
Mesh Layers: 2 layers
Uses: Second-stage screening

Shaker Screen API 80 – 177 Micron
Opening size: 177 µm
Standard Compliance: API RP 13C (ISO 13501)
Material: Stainless Steel Wire Mesh with steel frame
Weaving Type: Square mesh, multi-layer bonded
Panel Size: 1050 × 697 mm
Mesh Layers: 2–3 layers depending on API rating
Uses: Fine solids removal, drilling mud recovery

Shaker Screen API 100 – 149 Micron
Opening size: 149 µm
Standard Compliance: API RP 13C (ISO 13501)
Material: Stainless Steel Wire Mesh with steel frame
Weaving Type: Square mesh, multi-layer bonded
Panel Size: 1050 × 697 mm
Mesh Layers: 3 layers
Uses: High-efficiency mud control

Shaker Screen API 120 – 125 Micron
Opening size: 125 µm
Standard Compliance: API RP 13C (ISO 13501)
Material: Stainless Steel Wire Mesh with steel frame
Weaving Type: Square mesh, multi-layer bonded
Panel Size: 1050 × 697 mm
Mesh Layers: 3 layers
Uses: Fine screening, solids control for extended drilling runs

Shaker Screen API 140 – 105 Micron
Opening size: 105 µm
Standard Compliance: API RP 13C (ISO 13501)
Material: Stainless Steel Wire Mesh with steel frame
Weaving Type: Square mesh, multi-layer bonded
Panel Size: 1050 × 697 mm
Mesh Layers: 3 layers
Uses: Ultra-fine solids separation
Channel / screen protector rubber, cross support and side support can be supplied for assembly.

Pretensioned Shaker Screen SS304 Mesh 1165 × 585 mm Panels
Supply to Iraq for use in the Oil and Gas Industry

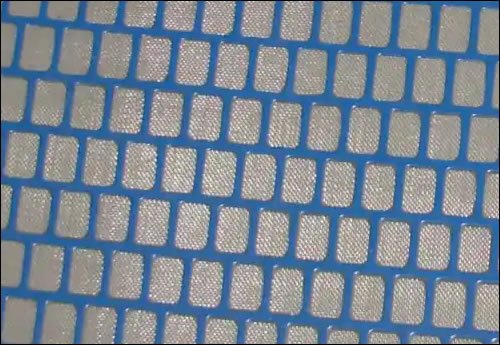

Pretensioned Shaker Screen API 200-75 Micron

Opening size: 75 µm
Standard Compliance: API RP 13C (ISO 13501)
Material: Stainless Steel Wire Mesh (SS304 standard, SS316 optional)
Weaving Type: Square mesh, multi-layer bonded
Panel Size: 1165 × 585 mm
Mesh Layers: 3 layers
Uses: Very fine solids control in drilling mud

Pretensioned Shaker Screen API 230 – 62.5 Micron
Opening size: 62.5 µm
Standard Compliance: API RP 13C (ISO 13501)
Material: Stainless Steel Wire Mesh (SS304 standard, SS316 optional)
Weaving Type: Square mesh, multi-layer bonded
Panel Size: 1165 × 585 mm
Mesh Layers: 3–4 layers
Uses: Ultra-fine solids separation, maximum drilling fluid recovery

Pretensioned Shaker Screen API 120 – 125 Micron
Opening size: 125 µm
Standard Compliance: API RP 13C (ISO 13501)
Material: Stainless Steel Wire Mesh (SS304 standard, SS316 optional)
Weaving Type: Square mesh, multi-layer bonded
Panel Size: 1165 × 585 mm
Mesh Layers: 3 layers
Uses: Fine solids removal, drilling mud recovery

Pretensioned Shaker Screen API 165 – 92 Micron
Opening size: 92 µm
Standard Compliance: API RP 13C (ISO 13501)
Material: Stainless Steel Wire Mesh (SS304 standard, SS316 optional)
Weaving Type: Square mesh, multi-layer bonded
Panel Size: 1165 × 585 mm
Mesh Layers: 3 layers
Uses: Fine cuttings separation
