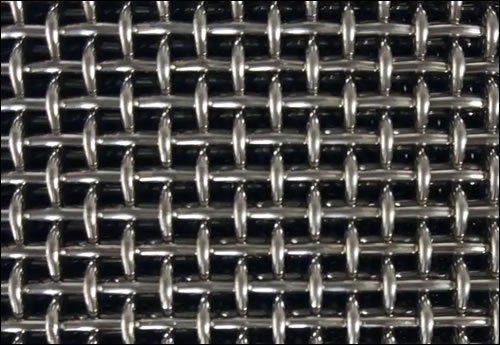

Stainless Steel Sieve Mesh - Sieve Cloth, Stainless Steel 316 Sieve Mesh

Stainless Steel Sieve Cloth SS 316L is a precision-woven wire mesh designed for accurate particle sizing, screening and filtration. Manufactured from corrosion-resistant SS 316L, the sieve cloth offers excellent durability, chemical resistance and stability under high temperatures. Stainless steel sieve mesh is widely used in laboratories, pharmaceuticals, food processing, mining and chemical industries. We supply ss woven wire mesh with consistent aperture size and strength for reliable sieving performance meeting with ASTM and ISO international standards.

General Sizes
Mesh count: 4–500 mesh
Aperture range: 4000 µm to 25 µm
Wire diameter: 0.02 mm – 1.0 mm
Roll width: 1.0 m – 1.5 m (custom up to 2.0 m)
Roll length: 15 m – 30 m (custom lengths available)

Standards
ASTM E11 (U.S. Standard Sieves)
ISO 3310 (International Test Sieve Standard）
JIS Z8801 (Japanese Sieve Standard)

Applications
Laboratory test sieves for particle analysis
Pharmaceutical sieving and powder classification
Food and beverage filtration and screening
Chemical and petrochemical processing
Mining, minerals, and metallurgy particle sizing
Water and wastewater treatment filtration

Weaving Patterns
Plain Weave (most common for precision sieving)
Twilled Weave (for finer meshes with higher strength)
Dutch Weave (for fine filtration with small apertures)

Features
Made from SS 316L for superior corrosion and chemical resistance
Stable aperture size ensuring accurate sieving and filtration
High tensile strength and wear resistance
Heat-resistant for high-temperature processing
Available in customized mesh counts, roll sizes and cut pieces
Meets ASTM and ISO compliance for laboratory and industrial use



SS Sieve Cloth – 15 Mesh

Mesh count: 15
Aperture: 1.18 mm (1180 µm)
Wire gauge: 27
Wire diameter: 0.45 mm
Material: SS 316L
Standard: ASTM/ISO stainless steel sieve cloth

SS Sieve Cloth – 20 Mesh
Mesh count: 20
Aperture: 850 µm
Wire gauge: 30
Wire diameter: 0.30 mm
Material: SS 316L
Standard: ASTM/ISO stainless steel sieve cloth

SS Sieve Cloth – 30 Mesh
Mesh count: 30
Aperture: 450 µm
Wire gauge: 28
Wire diameter: 0.35 mm
Material: SS 316L
Standard: ASTM/ISO stainless steel sieve cloth

SS Sieve Cloth – 35 Mesh
Mesh count: 35
Aperture: 420 µm
Wire gauge: 32
Wire diameter: 0.28 mm
Material: SS 316L
Standard: ASTM/ISO stainless steel sieve cloth

SS Sieve Cloth – 40 Mesh
Mesh count: 40
Aperture: 450 µm
Wire gauge: 36
Wire diameter: 0.19 mm
Material: SS 316L
Standard: ASTM/ISO stainless steel sieve cloth

SS Sieve Cloth – 45 Mesh
Mesh count: 45
Aperture: 355 µm
Wire gauge: 36
Wire diameter: 0.19 mm
Material: SS 316L
Standard: ASTM/ISO stainless steel sieve cloth

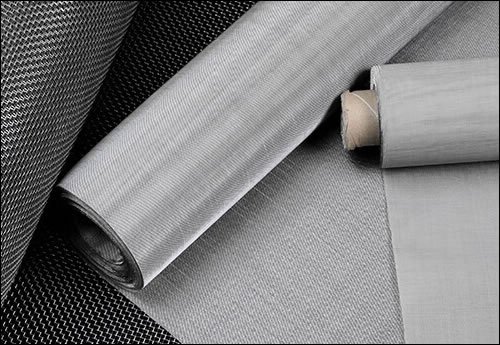

SS Sieve Cloth – 50 Mesh

Mesh count: 50
Aperture: 355 µm
Wire gauge: 38
Wire diameter: 0.15 mm
Material: SS 316L
Standard: ASTM/ISO stainless steel sieve cloth

SS Sieve Cloth – 55 Mesh
Mesh count: 55
Aperture: 280 µm
Wire gauge: 36.5
Wire diameter: 0.18 mm
Material: SS 316L
Standard: ASTM/ISO stainless steel sieve cloth

SS Sieve Cloth – 60 Mesh
Mesh count: 60
Aperture: 280 µm
Wire gauge: 38.5
Wire diameter: 0.14 mm
Material: SS 316L
Standard: ASTM/ISO stainless steel sieve cloth

SS Sieve Cloth – 70 Mesh
Mesh count: 70
Aperture: 224 µm
Wire gauge: 38.5
Wire diameter: 0.14 mm
Material: SS 316L
Standard: ASTM/ISO stainless steel sieve cloth

SS Sieve Cloth – 80 Mesh
Mesh count: 80
Aperture: 180 µm
Wire gauge: 38.5
Wire diameter: 0.14 mm
Material: SS 316L
Standard: ASTM/ISO stainless steel sieve cloth

SS Sieve Cloth – 90 Mesh
Mesh count: 90
Aperture: 190 µm
Wire gauge: 42
Wire diameter: 0.10 mm
Material: SS 316L
Standard: ASTM/ISO stainless steel sieve cloth

SS Sieve Cloth – 100 Mesh
Mesh count: 100
Aperture: 154 µm
Wire gauge: 42
Wire diameter: 0.10 mm
Material: SS 316L
Standard: ASTM/ISO stainless steel sieve cloth

SS Sieve Cloth – 110 Mesh
Mesh count: 110
Aperture: 140 µm
Wire gauge: 42
Wire diameter: 0.10 mm
Material: SS 316L
Standard: ASTM/ISO stainless steel sieve cloth

SS Sieve Cloth – 120 Mesh
Mesh count: 120
Aperture: 125 µm
Wire gauge: 43
Wire diameter: 0.09 mm
Material: SS 316L
Standard: ASTM/ISO stainless steel sieve cloth

SS Sieve Cloth – 130 Mesh
Mesh count: 130
Aperture: 112 µm
Wire gauge: 44
Wire diameter: 0.08 mm
Material: SS 316L
Standard: ASTM/ISO stainless steel sieve cloth

SS Sieve Cloth – 140 Mesh
Mesh count: 140
Aperture: 105 µm
Wire gauge: 44
Wire diameter: 0.08 mm
Material: SS 316L
Standard: ASTM/ISO stainless steel sieve cloth

SS Sieve Cloth – 160 Mesh
Mesh count: 160
Aperture: 90 µm
Wire gauge: 45
Wire diameter: 0.071 mm
Material: SS 316L
Standard: ASTM/ISO stainless steel sieve cloth

SS Sieve Cloth – 180 Mesh
Mesh count: 180
Aperture: 80 µm
Wire gauge: 46
Wire diameter: 0.06 mm
Material: SS 316L
Standard: ASTM/ISO stainless steel sieve cloth

SS Sieve Cloth – 190 Mesh
Mesh count: 190
Aperture: 80 µm
Wire gauge: 47
Wire diameter: 0.053 mm
Material: SS 316L
Standard: ASTM/ISO stainless steel sieve cloth

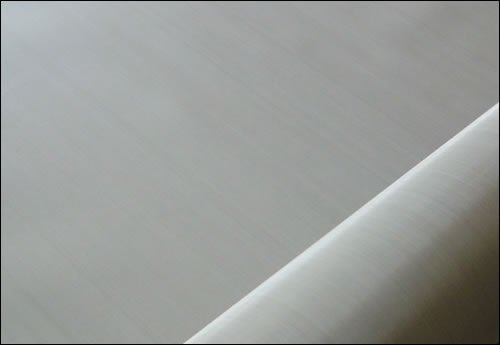

SS Sieve Cloth – 200 Mesh

Mesh count: 200
Aperture: 70 µm
Wire gauge: 47
Wire diameter: 0.053 mm
Material: SS 316L
Standard: ASTM/ISO stainless steel sieve cloth

SS Sieve Cloth – 230 Mesh
Mesh count: 230
Aperture: 63 µm
Wire gauge: 48
Wire diameter: 0.045 mm
Material: SS 316L
Standard: ASTM/ISO stainless steel sieve cloth
